TD Series Tailing Pulp Pressure Screen of Coarse Screen

    • Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.
    • » Products » Screening Equipment » TD Series Tailing Pulp Pressure Screen of Coarse Screen

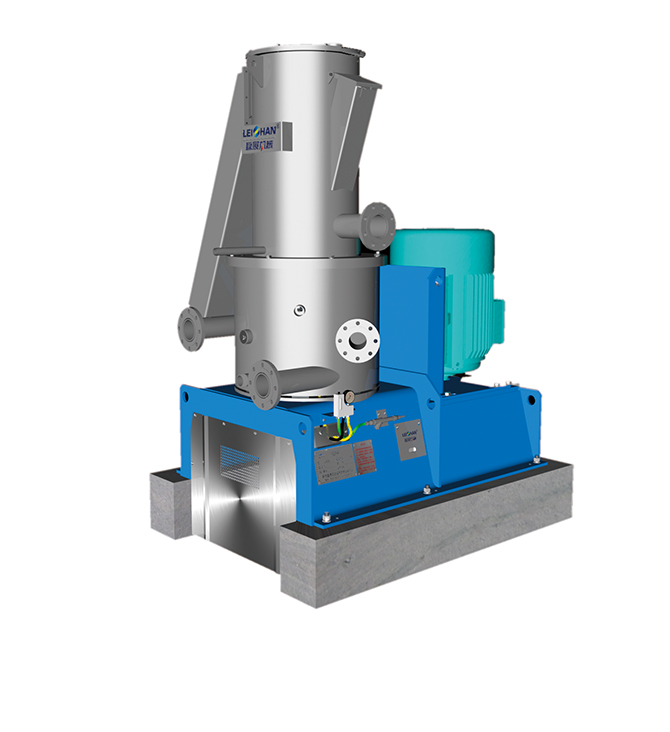

TD Series Tailing Pulp Pressure Screen of Coarse Screen

Product Overview

TD Series Tailing Pulp Pressure Screen of Coarse Screen is mainly used for the deflaking of the tailing pulp and the separation of light impurities at the end of the waste paper pulp screening system.

Features

1. Continuous operation, large capacity.

2. Adapted to high concentration, close to 3%.

3. The reject discharging concentration is close to 30%.

4. Working under closed condition, the environment is clean.

5. The fiber loss rate is low.

Technical Data

Type TD1 TD2
Production Capacity(t/d) 60-80 80-100
Concentration of Input Pulp (%) <3
Concentration of Reject (%) ≈30
Max. Working Pressure(Mpa) 0.15
Motor Power(kw) 75 90
Share

We are professional manufacturer, specialize in complete stock preparation line for more than 40 years. From production line & factory design to installation, commissioning and training, we can offer the complete turnkey solution. Main products include chain conveyor, pulping system equipment, pulp screen system equipment, pulp cleaning system equipment, etc.
