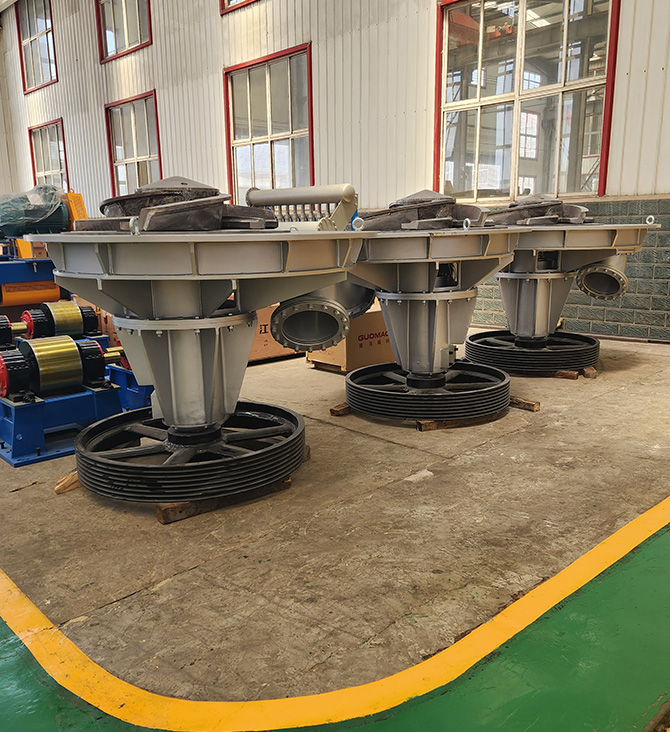

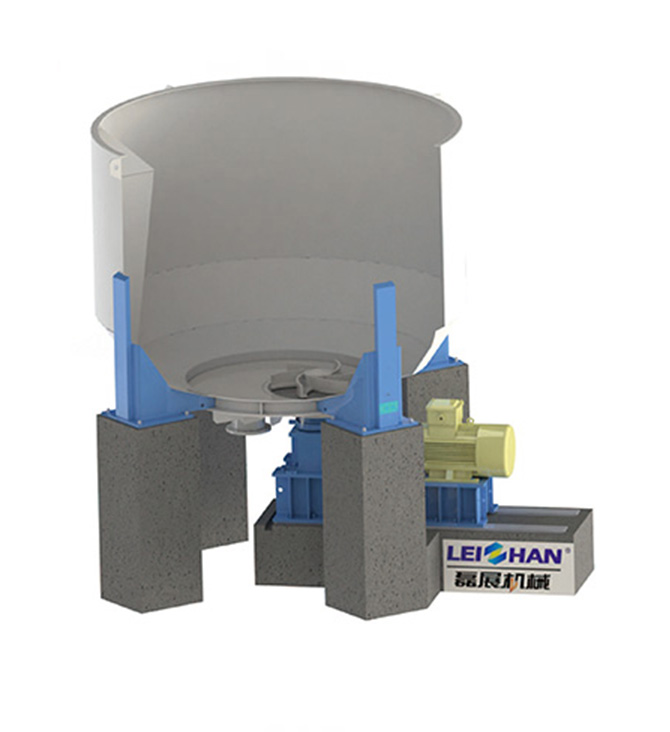

PX Series Eccentric Pulper

PX Series Eccentric Pulper

Product Overview

PX Series Eccentric Pulper is mainly used to pulp all kinds of waste paper, virgin pulp board and paper machine broken paper.

Features

1. Rotor and sieve plate with eccentrically design, double cone structure.

2. Lower energy consumption, 20% energy saving than traditional pulper.

3. The twisted rope of the Ragger has a wider movement area, the twisted rope is far away from the rotor, the rotor load is smaller, and the risk of twisted rope breakage is reduced.

Technical Data

PX-V Eccentric Pulper
Model PX15-V PX20-V PX25-V PX30-V PX35-V PX40-V PX50-V PX65-V PX85-V PX107-V
Nominal Volume(m³) 15 20 25 30 35 40 50 65 85 107
Treatment Consistency(%) 4-8
Capacity(t/d) 60-90 80-120 120-170 140-190 10-230 220-290 300-400 400-550 600-700 800-1000
Motor Power(KW) 110 132 160 220 250 280 355 500 630 800
PX-R Eccentric Pulper
Model PX20-R PX25-R PX30-R PX35-R PX40-R PX52-R PX73-R PX95-R PX120-R PX175-R
Nominal Volume(m³) 20 25 30 35 40 50 65 85 120 175
Treatment Consistency(%) 4-8
Capacity(t/d) 140-180 180-230 230-280 270-320 300-370 400-450 550-600 650-750 800-1000 1300-1500
Motor Power(KW) 160 185 250 280 315 400 560 710 900 1300
